Specs:
-
Model: Abound LR Ebike
- Weight: 88 lbs
- Total Weight Limit: 440 lbs
- Rider Height: 4'11" - 6'3"
- EBike Class: Class 2 Ebike
- Water Resistance: IPX4
- Range: Up to 60 miles
- Battery Safety Certifications: Certified to UL 2271
-
Safety Certifications: UL and TUV Safety Certified UL 2849
- Ideal Use: Cargo & Utility
- Pedal Assist: 3 Levels (with Ride Tune Customization)
- Carry Capacity: Carry up to 2 Passengers
- Frame: Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery
- Fork: Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions
- Rear Spacing: 175mm
- Fork Spacing: 110mm
- Frame Style: Step-Through
- Front Wheel: Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve
- Rear Wheel: Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve
- Tires: 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

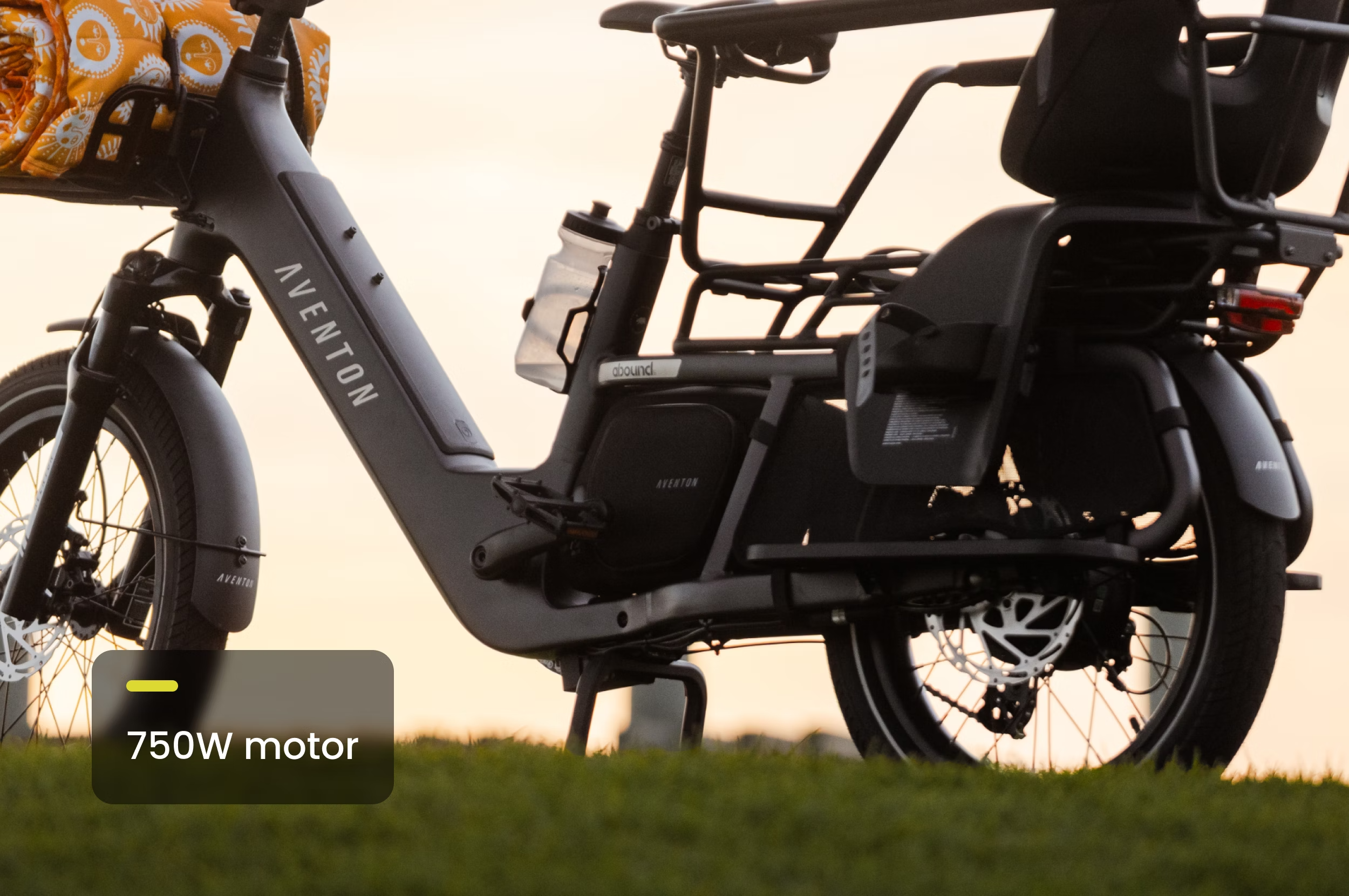

- Motor: Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
- Motor Torque: 80Nm
- Display: Aventon BC147
- Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
- Battery Weight: 8.7 lbs
- Controller: 36V/33A
- Throttle: Aventon LH Handlebar Mounted
- Sensors: Double Sided Bottom Bracket Torque Sensor
- Charger: 36V Output: 42V/ 4A
- Charging Time from 0% to 100%: 5 hours
- Lights: Front and Rear Lights Integrated w/ Turn Signals
- Speed: Class 2
- Front Brakes: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
- Rear Brakes: Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
- Front Brake Rotor: 180mm 6 bolt
- Rear Brake Rotor: 203mm 6-bolt
- Rear Derailluer: Shimano Altus RD-M310 8 Speed
- Shifter: Shimano 8 Speed Trigger SL-M315-8R
- Chain: 7/8 speed 154L
- Cassette: 12-32T / 8 Speed Shimano CS HG200-8
- Chainring: 52 tooth
- Chainring BCD: 104
- Crank: 3pc, 165mm crank arm
- Bottom Bracket: Square Taper, Sealed, Dual-Sided Torque Sensor
- Pedals: 9/16" Composite Platform
- Saddle: Aventon Saddle w/ grab handle by Selle Royal
- Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
- Seatpost Clamp: 34.9mm
- Handlebars: BMX Style Aluminum 31.8mm, 720mm
- Grips: Aventon Ergonomic Comfort lock on grips
- Headset: H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs
- Fenders: Included
- Rear Rack: Included
- Rear Rack Weight Limit: 143 lbs
Technical Overview
The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*
